 产品规格 |
| |
| CPU |
LGA1155 插座支持 Intel® Core™ i7/i5/i3/Pentium®/Celeron® 处理器 |
| PCH |
Intel® H61 |
| BIOS |
UEFI |
| 内存 |
两个 240-pin 1333/1066MHz 双通道 DDR3 & DDR3L (1.35V) DIMMs 可支持(系统最大支持 16GB) |
| 以太网 |
双 Realtek RTL8111E PCIe GbE 接口 (支持 LAN1 及 ASF 2.0) |
| I/O接口 |
2 x RS-232
1 x RS-422/485
1 x LPT
1 x FDD
1 x PS/2 KB/MS
1 x 6-pin wafer for KB & MS
7 x USB 2.0 (1 on rear, 6 by pin header)
4 x SATA 3Gb/s (H61 不支持 AHCI & RAID) |
| 数字I/O |
8-bit 数字 I/O (4-bit 输入, 4-bit 输出) |
| Super I/O |
Fintek F81866 |
| TPM |
2 x 10-pin header |
| SMBus |
1 x 4-pin wafer |
| 音频 |
支持 7.1 通道 HD 音频 by IEI AC-KIT-888HD kit |
| 显示接口 |
1 x VGA
1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB 模块) (可选) |
| 扩展槽 |
PCI 信号及 ISA 金手指信号 |
| 看门狗定时器 |
软件可编程支持 1~255 秒系统重置 |
| 电源 |
5V/12V,支持 AT/ATX |
| 风扇 |
1 x 4-pin 智能风扇接口
1 x 4-pin 系统风扇接口 |
| 功耗 |
5V@4.53A, 12V@0.19A, Vcore_12V@7.81A, 5VSB@0.18A(3.4GHz Intel® Core™ i7-2600K 支持两个 2GB 1333MHz DDR3 内存) |
| 视频引擎 |
Intel® HD Graphics Gen 6 支持 DX10.1 和 OpenGL 3.0 Full MPEG2, VC1, AVC Decode |
| 工作温度 |
-10°C ~ 60°C |
| 相对湿度 |
5% ~95%, 无冷凝 |
| 尺寸 |
185 mm x 122 mm |
| 重量 |
GW: 1000g/NW: 260g |
| 嵌入式控制器 |
ITE IT8519E |
| Front Panel |
1 x 前面板 (电源 LED, HDD LED, 扬声器, 电源按钮, 复位按钮) |
| I2C |
1 x 4-pin wafer |
| PCIe-PCI Bridge |
ITE IT8892E |
| PCI-ISA Bridge |
ITE IT8888G |
| |
| 订购信息 |
| |
| 产品名称 |
描述 |
| WSB-H610-R10 |

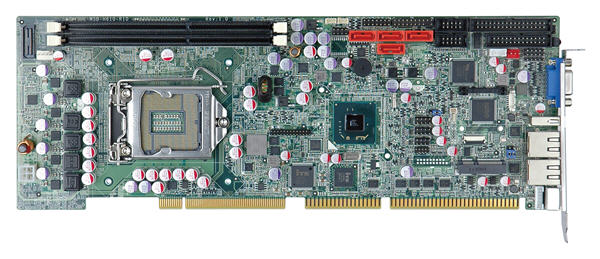

Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA, dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and RoHS |
| WSB-H610-DVI-R10 |
Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and RoHS |
| 32006-000300-100-RS |
Male PS/2 KB/MS Y-cable w/o bracket, 12cm(KB)+14cm(MS) |
| 19800-000075-RS |
6-pin header PS/2 KB/MS Y-cable with bracket, 220mm |
| SAIDE-KIT01-R10 |
SATA to IDE/CF converter board |
| 32102-000100-300-RS |
SATA power cable |
| 19800-000049-RS |
LPT cable |
| 32229-000100-100-RS |
FDD cable |
| AC-KIT-888HD-R10 |
7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams |
| CPU-DT-i5-2500T |
Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-i5-2390T |
Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-i3-2100T |
Intel® Core™ i3-2100T processor, LGA1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-P-G620T |
Intel® Pentium® G620T processor, LGA1155, dual core 2.2GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CPU-DT-C-G440 |
Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler |
| CF-1156A-RS-R10 |
High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156B-RS-R10 |
High performance LGA1155/LGA1156 cooler kit, 95W |
| CF-1156C-RS |
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W |
| CF-1156D-RS |
LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W |
| TPM-IN01-R11 |
20-pin Infineon TPM module, software management tool, firmware V3.17 |
|
|
