ECW-281B/B2-D525

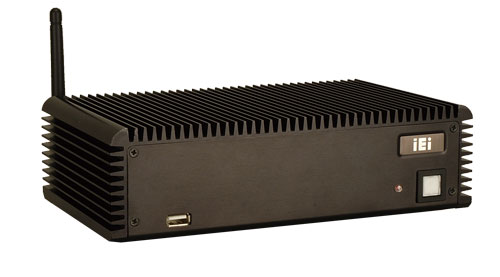

Enlarge image
基于 Intel® Atom™ D525 双核无风扇嵌入式系统

Datasheet (PDF)




产品特征 产品特征


 - 无风扇系统采用 1.8 GHz Intel® Atom™ D525 双核 CPU
- 支持 4×USB 2.0,6×COM
- 双 GbE LAN 适用于高速网络应用
- 支持 CompactFlash®, 2.5” SATA HDD 和 SSD 存储设备
- 12 VDC 和 9 VDC - 36 VDC 电源输入
- 支持双 VGA 显示 (仅限 B2 型号)


产品规格 产品规格




平台 Intel®
型号 ECW-281B-D525 (ECW-281B2-D525)
外观颜色 黑色
尺寸(D×W×H)(mm) 229 x 132 x 64mm
机箱材质 铝合金重金属
CPU Intel® Atom™ D525 处理器1.8GHz / 1MB L2 缓存
芯片组 ICH8M
内存 1 x 204-pin 1GB DDR3 SODIMM (2GB 可选)
硬盘 1 x 2.5" SATA HDD 空间, 1 x Compact Flash
以太网 2 x Realtek RTL8111CP PCIe GbE
显示接口 1 (2) x VGA, 分辨率是 2048 x 1536 @ 60Hz
音频 1 x 扬声器输出
无线 1 x 802.11 b/g/n
扩展槽 1 x PCIe Mini 卡插槽 (预留用于 Wi-Fi)
电源输入 12VDC 输入 9-36V (WD 型号)
功耗 12V@1.79A (Intel® Atom™ D525 1.8GHz 支持 DDR3 1GB
安装方式 DIN mount, VESA 75 mount, wall mount
工作温度 -20°C ~ 65°C (针对 CF/SSD) -10°C ~ 50°C (针对 HDD)
抗震动 符合 MIL-STD-810F 514.5C-1
MIL-STD-810F 514.5C-2
抗冲击 Half-sine wave 3G; 11ms 3 shocks per axis
重量(NW/GW) 2.1kg/3.9kg
主板 WAFER-PV-D5252
USB 4 x USB 2.0
串口 6 个 RS-232 口支持 ECW-281B-D525 (COM2: 预设 RS-232, RS422/485 可选) 5 个 RS-232 口支持 ECW-281B2-D525
机箱 铝合金重型金属

订购信息 订购信息




Part No. Description
12V DC input
ECW-281B-R10/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with 6 serial ports, with 1GB DDR3 memory, 12VDC in, 60W power adapter with ERP and PSE certificates, black, RoH
ECW-281BW-R10/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with 6 serial ports, built- in 802.11b/g/n wireless, with 1GB DDR3 memory, 12VDC in, 60W power adapter with ERP and PSE certificates, black, RoHS
ECW-281B2-R10/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with dual VGA display and 5 serial ports, with 1GB DDR3 memory, 12VDC in, 60W power adapter with ERP and PSE certificates, black, RoHS
ECW-281B2W-R10/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with dual VGA display and 5 serial ports, built-in 802.11b/g/n wireless, with 1GB DDR3 memory, 12VDC in, 60W power adapter with ERP and PSE certificates, black, RoHS
ECW-281BWD-R10/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with 6 serial ports, with 1GB DDR3 memory, 9-36VDC in, w/o power adapter, black, RoHS
9~36VDC input
ECW-281BWDW-R10/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with 6 serial ports, built- in 802.11b/g/n wireless, with 1GB DDR3 memory, 9-36VDC in, w/o power adapter, black, RoHS
ECW-281B2WD-R10/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with dual VGA display and 5 serial ports, with 1GB DDR3 memory, 9-36VDC in, w/o power adapter, black, RoHS
ECW-281B2WDW-R10/D525/1GB Fanless embedded system with WAFER-PV-D5252, with dual-core Intel® Atom™ D525 1.8G, with dual VGA display and 5 serial ports, built-in 802.11b/g/n wireless, with 1GB DDR3 memory, 9-36VDC in, w/o power adapter, black, RoHS
订购信息 包装清单




1 * QIG 1 * Screw set
1 * DIN mount 1 * Hard drive thermal pad
2 * Wall mount bracket 1 * Driver & user manual CD
1 * 12V 60W power adapter (optional for WD model) (P/N:63000-FSP060DBAB1552-RS) 1 * Power cord (optional for WD model)
1 * Wireless antenna (for wireless model)
